Elise S1 Steel Uprights

GENERAL



Strength for strength the lightest, stiffest, and easily the most durable kit available with unsurpassed bearing reliability. The rest of the kit is designed to last the life of the car.

All kits come fully assembled and pre set with the correct bump steer shims where this information has been supplied by the customer, otherwise we use the Lotus recommended initial bump steer setting for the kit type. The kits are also correctly orientated and soft locked to help reduce both fitting errors and the fitting time as much as possible.

Detailed, comprehensive and clear fitting instructions are supplied, this includes a tool list and general advice regarding the safety issues.



INNER FITTING

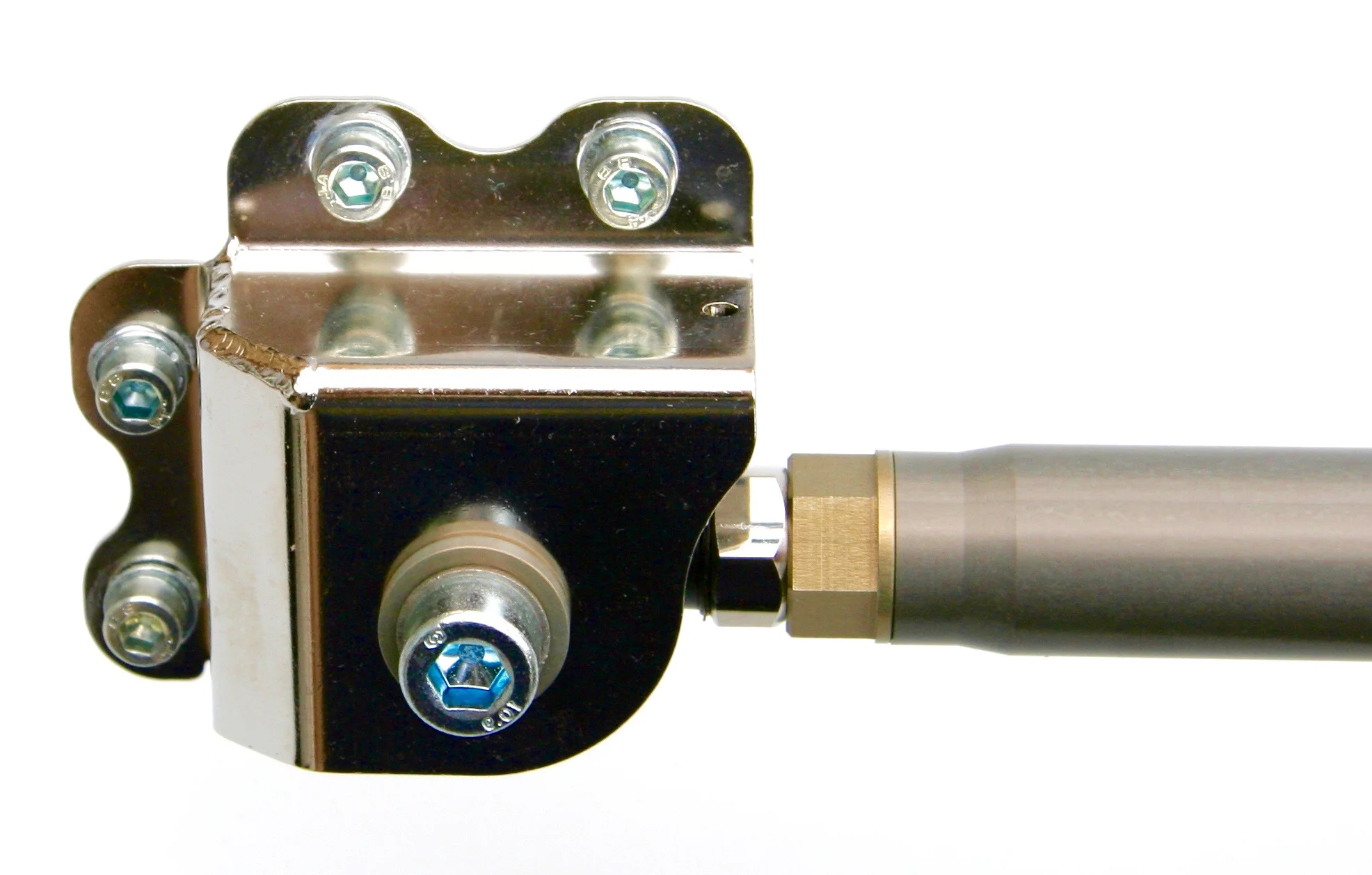

The toe link bearing is secured to the sub frame at the inner end with a double shear bracket for extra strength.

The brackets are convoluted to increase the overall deformation resistance by both form and work hardening, the design also increase the clearance behind the subframe from the exhaust.

Brackets are electropolished to reduce salt adhesion and all the required fasteners are supplied in the kit.

OUTER FIXING

This fixing has two options, the first is an M10 fastener, which is a direct fit, the second option is an M12 fastener, this is an even stronger setup and recommended for full race use but it does require the uprights to be drilled or reamed to 12.0mm to accept the bolt.

Both bump steer and toe are easily adjustable allowing both to be corrected for any ride height or extreme geometry setup.

PURCHASING AND CONTACT

ELISE S1 STEEL UPRIGHTS -  £357 + DEL + VAT IF APPLICABLE

PLEASE CLICK HERE TO CONTACT US WITH YOUR MODEL,  YEAR, AND YOUR INTENDED USAGE AND WE WILL BE MORE THAN HAPPY TO SUGGEST KITS AND OPTIONS TO SUIT YOUR REQUIREMENT WITHOUT OBLIGATION
